Cooker type
Product Cavity Type | Double |
Cooker type | Double oven with grill |
Cooker fuel | Electric |
Hob Features
Heat Indicators | Yes |
Residual Heat Indicators | Yes |
Fuel | Electric |
Hob on indicator | Yes |
Adjustable heat settings | Yes |
Ignition | - |
Controls | On main panel |
Hob Type | Electric Ceramic |
Heating zones
No. Of heating zones | 4 Vitroceramic |
Front left (kW) | 1.7 kW |
Front right (kW) | 1.2 kW |
Rear left (kW) | 1.2 kW |
Rear right (kW) | 1.7 kW |
Controls
Control panel | Metal control panel |
Control knobs | Easy grip controls |
Timer
Type | Mechanical |
Function | Mechanical Minute Minder |
Top Cavity
Number of Cooking Functions | 1 function |
Energy Efficiency Class | A |
Volume | 31 |
Energy Consumption (Conventional) (kWh) | 0.65 |
Energy Efficiency Index | 95.6 |
Heat Source | Electrical |
Door Opening Type | Drop down |
Number of Front Door Glasses | 2 |
Removable Inner Door Glass | Yes |
Type Interior Light | No |
Telescopic Pull-out Shelf System | NA |
Catalytic Side Walls | No |
Energy consumption (kWh) | 0.65 |
Oven | Yes |
Grill | Yes |
Oven type | Conventional Cooking |
Grill Type | Electric Grill |
Grill Power (kW) | 2.0 kW |
Oven temp range | 80 - 240 deg C |
Main Cavity
Number of Cooking Functions | 1 function |
Energy Efficiency Class | A |
Volume | 58 |
Front Door Color | White |
Door Opening Type | Side Opening - Left |
Handle Color | White |
Handle Color | White |
Number of Front Door Glasses | 2 |
Telescopic Pull-out Shelf System | NA |
Pyrolytic Self Cleaning System | No |
Steam Cleaning | Simple steam cleaning |
Catalytic Back Wall | No |
Catalytic Side Walls | No |
CleanZone Nano Coating on Inner Glass | No |
Pizza Stone | 0 |
Meat Probe | No |
Oven | Yes |
Grill pan set (grill pan and internal rack) | Yes |
Oven Functions
Static Cooking (Main Cavity) | No |
Static Cooking (Top Cavity) | Yes |
Bottom Heating with Fan | No |
Grill with Fan | No |
Defrost with Fan | No |
Grill Cooking - Main Cavity | No |
Grill Cooking (Main Cavity) | No |
Grill Cooking - Top Cavity | Yes |
Grill Cooking (Top Cavity) | Yes |
Half Grill Cooking (Main Cavity) | No |
Half Grill Cooking (Top Cavity) | No |
Static Cooking with Fan (Fan Assisted) | No |
Top Heating with Fan | No |
Bottom Heating (Main Cavity) | No |
Bottom Heating (Top Cavity) | No |
Eco-Fan Heating | No |
Steam Cleaning | No |
Pyrolytic Cleaning | No |
Eco Pyrolytic Cleaning | No |
Fan Oven | Yes |
Static Cooking | Yes |
Fan Defrost | No |
Fan Grilling | No |
Grill Cooking | Yes |
3D Cooking | No |
Slow Cooking | No |
Warm Keeping | No |
Bottom Heater | No |
Microwave Cooking | No |
Microwave + Grill Cooking | No |
Steam Assisted Cooking | No |
Other features
Cooling fan | No |
Air cooled doors | No |
Oven Controls
Control Type | Mechanical Control - Single Knob |
Control Panel Type | Metal Panel |
Control Panel Color | White |
Display Type | - |
Timer Type | Minute Minder without Cut-off |
Dimensions & Weights
Product Height (mm) | 900 |
Product width (mm) | 500 |
Product depth (mm) | 600 |
Carton height (mm) | 1025 |
Carton width (mm) | 560 |
Carton depth (mm) | 700 |
Net Weight (kg) | 46.700 kilograms |
Gross Weight (kg) | 50.300 kilograms |
Installation
Recommended for hardwiring | Yes |
Adjustable feet for leveling | Yes |
Minimum Fuse Protection | 32 a |
EN60335-2-6 approved | Yes |
Consumption Values & Other Technical Specification
CE Approved / Requested Standards | CE |
CE Approved | Yes |
Installation (Connection & Installation)
Plug supplied | N/A |
Installation & Technical Specification
Plug Supplied | N/A |
Requested Standards | CE |
Technical Specification
CE Approved / Requested Standards | CE |
Model Codes

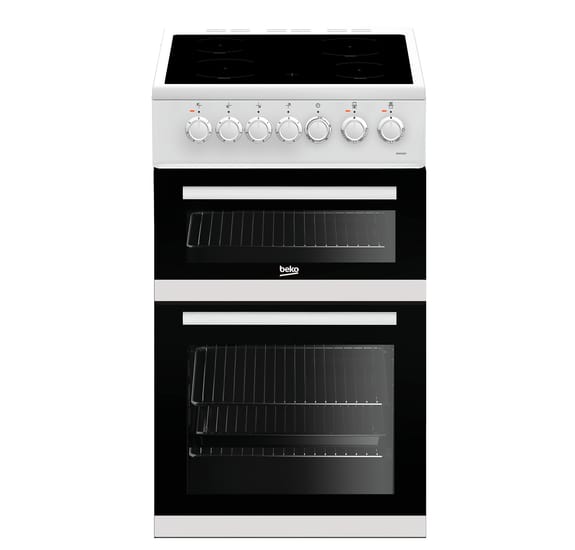

EDVC503W | EAN:5023790043380 | |

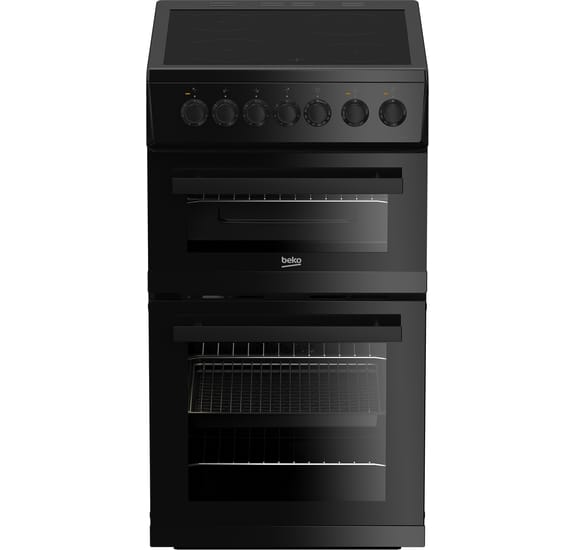

EDVC503B | EAN:8690842389337 | |

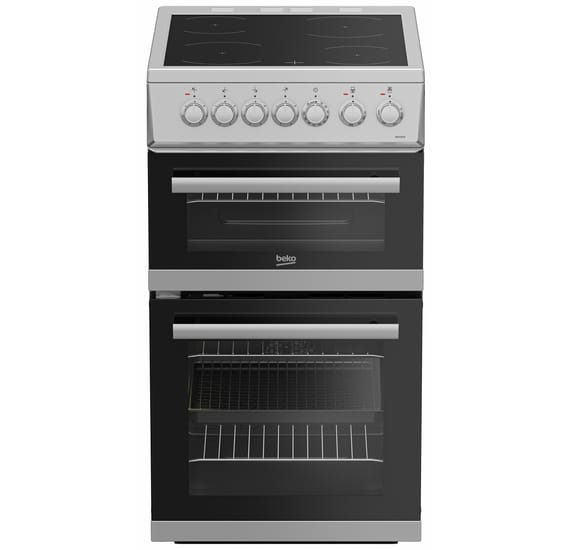

EDVC503S | EAN:8690842531361 |
