Cooker type
| Product Cavity Type | Double |
| Cooker type | Double oven with grill |
| Cooker fuel | Electric |
Hob Features
| Residual Heat Indicators | Yes |
| Glass Top Lid | No |
| Fuel | Electric (Vitroceramic) |
| Hob on indicator | Yes |
| Adjustable heat settings | Yes |
| Ignition | No |
| Controls | On main panel |
| Hob Type | Vitroceramic |
Heating zones
| No. Of heating zones | 4 Vitroceramic |
| Front left (kW) | 1.7 kW |
| Front right (kW) | 1.2 kW |
| Rear left (kW) | 1.2 kW |
| Rear right (kW) | 1.7 kW |
Top Cavity
| Number of Cooking Functions | 1 function |
| Energy Efficiency Class | A |
| Volume | 31 |
| Energy Consumption (Conventional) (kWh) | 0.65 |
| Energy Efficiency Index | 95.6 |
| Heat Source | Electrical |
| Door Opening Type | Drop down |
| Number of Front Door Glasses | 2 |
| Removable Inner Door Glass | Yes |
| Type Interior Light | No |
| Telescopic Pull-out Shelf System | No |
| Catalytic Side Walls | No |
| Energy consumption (kWh) | 0.65 |
| Oven | Yes |
| Grill | Yes |
| Oven type | Conventional Cooking |
| Grill Type | Electric Grill |
| Grill Power (kW) | 2.0 kW |
| Oven temp range | 80 - 240 deg C |
| Fully Variable Grill | Yes |
| Grill pan set (grill pan and internal rack) | Yes |
| Open or Closed Door Grilling | Open |
| Grill pan handle | No |
| Door Type | Metal & glass |
| Door Opening | Drop down |
| Removable metal shelf runners | No |
| Interior Light | No |
| Shelf Positions | 2 |
| Top element Power (kW) | 0.5 kW |
| Bottom element Power (kW) | 1 kW |
Main Cavity
| Number of Cooking Functions | 1 function |
| Energy Efficiency Class | A |
| Volume | 58 |
| Front Door Color | White |
| Door Opening Type | Side Opening - Left |
| Front Door Colour | White |
| Handle Color | White (Black support) |
| Number of Front Door Glasses | 2 |
| Handle Colour | White (Black support) |
| Interior Light Type | Halogen |
| Telescopic Pull-out Shelf System | No |
| Pyrolytic Self Cleaning System | No |
| Steam Cleaning | Yes |
| Catalytic Back Wall | No |
| Catalytic Side Walls | No |
| CleanZone Nano Coating on Inner Glass | No |
| Pizza Stone | No |
| Meat Probe | No |
| Oven | Yes |
| Grill pan set (grill pan and internal rack) | Yes |
| Removable inner door glass | Yes |
| Removable metal shelf runners | No |
| Oven Type | Fan Heating - Without Grill |
| Grill | No |
| Grill type | No |
| Door Type | Metal & Glass |
| Door opening | Side (left) |
| Enamel Colour | Black |
| Interior Light | Yes |
| Shelf Positions | 5 |
| Turnspit | No |
| MeatProbe | no |
| Glass Tray | No |
| Fan oven element (kW) | 1.8kW |
Oven Functions
| Static Cooking (Main Cavity) | No |
| Static Cooking (Top Cavity) | Yes |
| Bottom Heating with Fan | No |
| Grill with Fan | No |
| Defrost with Fan | No |
| Grill Cooking (Main Cavity) | No |
| Grill Cooking (Top Cavity) | Yes |
| Half Grill Cooking (Main Cavity) | No |
| Half Grill Cooking (Top Cavity) | No |
| Static Cooking with Fan (Fan Assisted) | No |
| Top Heating with Fan | No |
| Bottom Heating (Main Cavity) | No |
| Bottom Heating (Top Cavity) | No |
| Eco-Fan Heating | No |
| Steam Cleaning | No |
| Pyrolytic Cleaning | No |
| Eco Pyrolytic Cleaning | No |
| Fan Oven | Yes |
| Fan Defrost | No |
| Fan Grilling | No |
| Grill Cooking | Yes |
| 3D Cooking | No |
| Slow Cooking | No |
| Warm Keeping | No |
| Microwave Cooking | No |
| Microwave + Grill Cooking | No |
| Steam Assisted Cooking | No |
Oven Controls
| Control Panel Type | Metal Panel |
| Control Panel Color | White |
| Control Panel Colour | White |
| Display Type | - |
| Timer Type | - |
| Timer Function | - |
Dimensions & Weights
| Product Height (mm) | 900 |
| Product width (mm) | 500 |
| Product depth (mm) | 600 |
| Carton height (mm) | 1025 |
| Carton width (mm) | 560 |
| Carton depth (mm) | 700 |
| Net Weight (kg) | 45.04 kg |
| Gross Weight (kg) | 49.49 kg |
Safety Features
| Cool Door | No |
Installation & Technical Specification
| Plug Supplied | No |
| Requested Standards | CE |
Model Codes

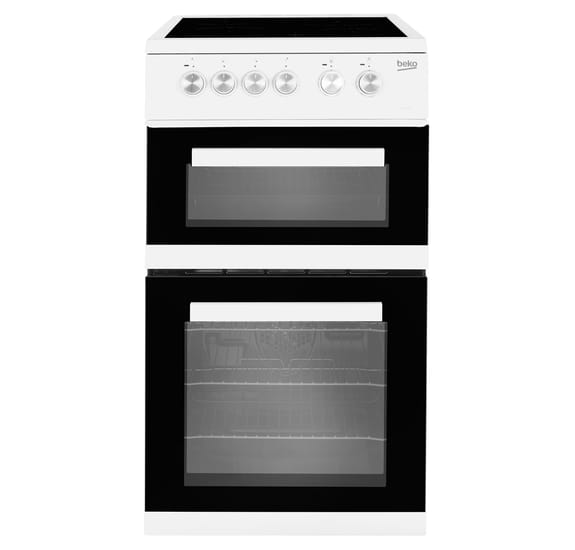

| KDVC563AW | EAN:5023790044004 | |

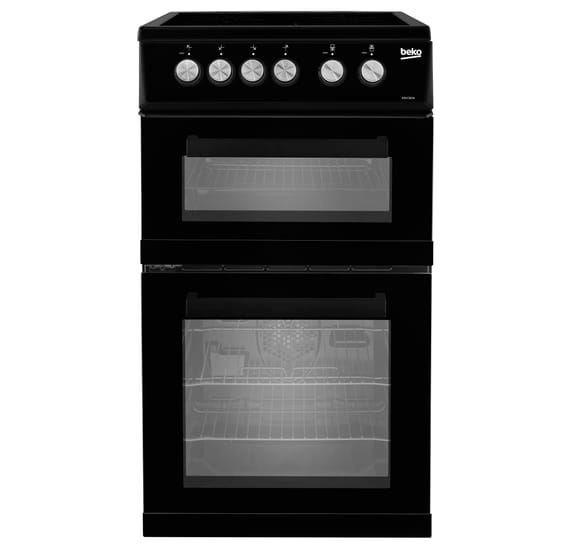

| KDVC563AK | ||

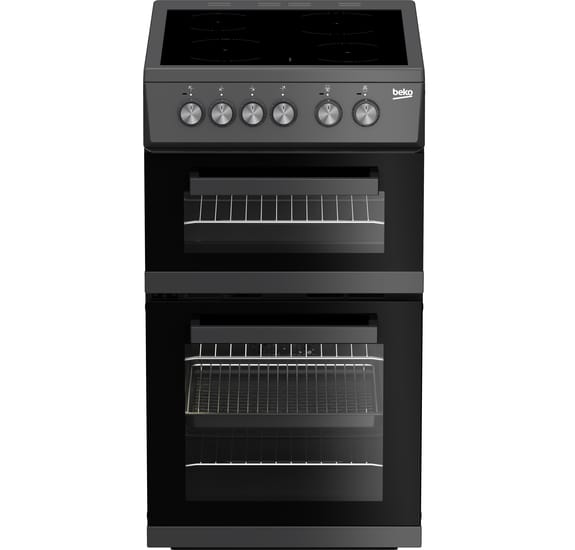

| KDVC563AA | EAN:8690842706318 |
